Complete technical spec sheets for our commercial truck tyre range — steer, drive, trailer and all-position patterns for long haul, regional, mixed service and off-road applications.

Filter

STEERLONG HAUL

TRS07

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
12R22.5	150/147L	16	9.00	8.25	300	1085	504	3350 / 7390	3075 / 6780	830	120	18.0
12R22.5	152/149K	18	9.00	8.25	300	1085	504	3550 / 7830	3250 / 7160	930	135	18.0

STEERLONG HAULREGIONAL HAUL

TRS01

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
11R22.5	144/142M	14	8.25	7.50	279	1054	491	2800 / 6175	2650 / 5840	720	105	15.0
11R22.5	146/143M	16	8.25	7.50	279	1054	491	3000 / 6610	2725 / 6005	830	120	15.0
11R24.5	146/143M	14	8.25	7.50	279	1104	516	3000 / 6610	2725 / 6005	720	105	15.0
11R24.5	149/146M	16	8.25	7.50	279	1104	516	3250 / 7160	3000 / 6610	830	120	15.0
295/75R22.5	144/141M	14	9.00	8.25	298	1014	474	2800 / 6175	2575 / 5675	760	110	15.0
285/75R24.5	144/141M	14	8.25	—	283	1050	493	2800 / 6175	2575 / 5675	760	110	15.0
285/75R24.5	147/144L	16	8.25	—	283	1050	493	3075 / 6780	2800 / 6175	830	120	15.0

STEERMIXED SERVICE

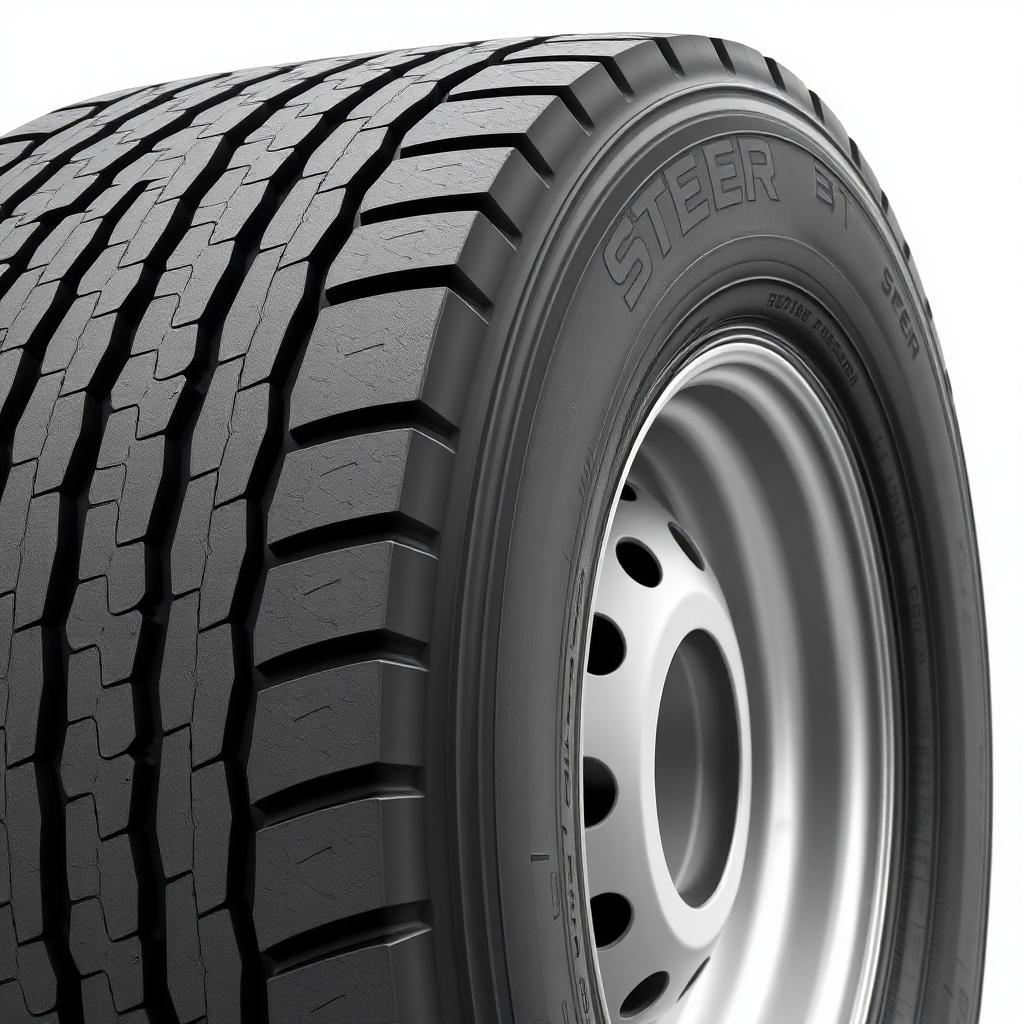

TR601H / TR696A

Detailed specifications available on request — contact us for the full data sheet.

DRIVELONG HAULREGIONAL HAUL

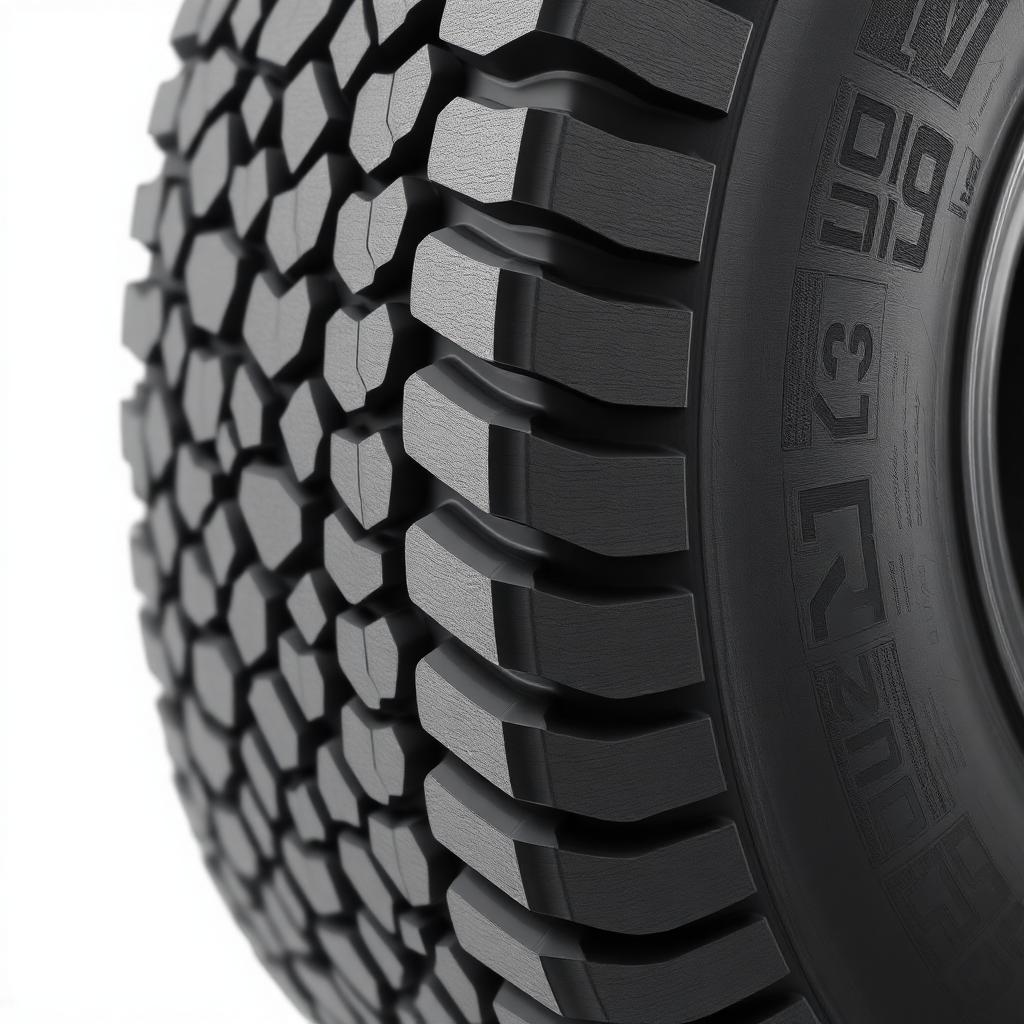

TRD02

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
295/80R22.5	152/148M	16	9.00	8.25	298	1044	487	3550 / 7825	3150 / 6945	850	125	18.0
295/80R22.5	154/151M	18	9.00	8.25	298	1044	487	3750 / 8270	3450 / 7610	900	130	18.0
315/80R22.5	154/151M	18	9.00	9.75	312	1076	500	3750 / 8270	3450 / 7610	830	120	20.0
315/80R22.5	157/154L	20	9.00	9.75	312	1076	500	4125 / 9090	3750 / 8270	900	130	20.0

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
12R22.5	150/147L	16	9.00	8.25	300	1085	504	3350 / 7390	3075 / 6780	830	120	23.0
12R22.5	152/149K	18	9.00	8.25	300	1085	504	3550 / 7830	3250 / 7160	930	135	23.0

DRIVELONG HAUL

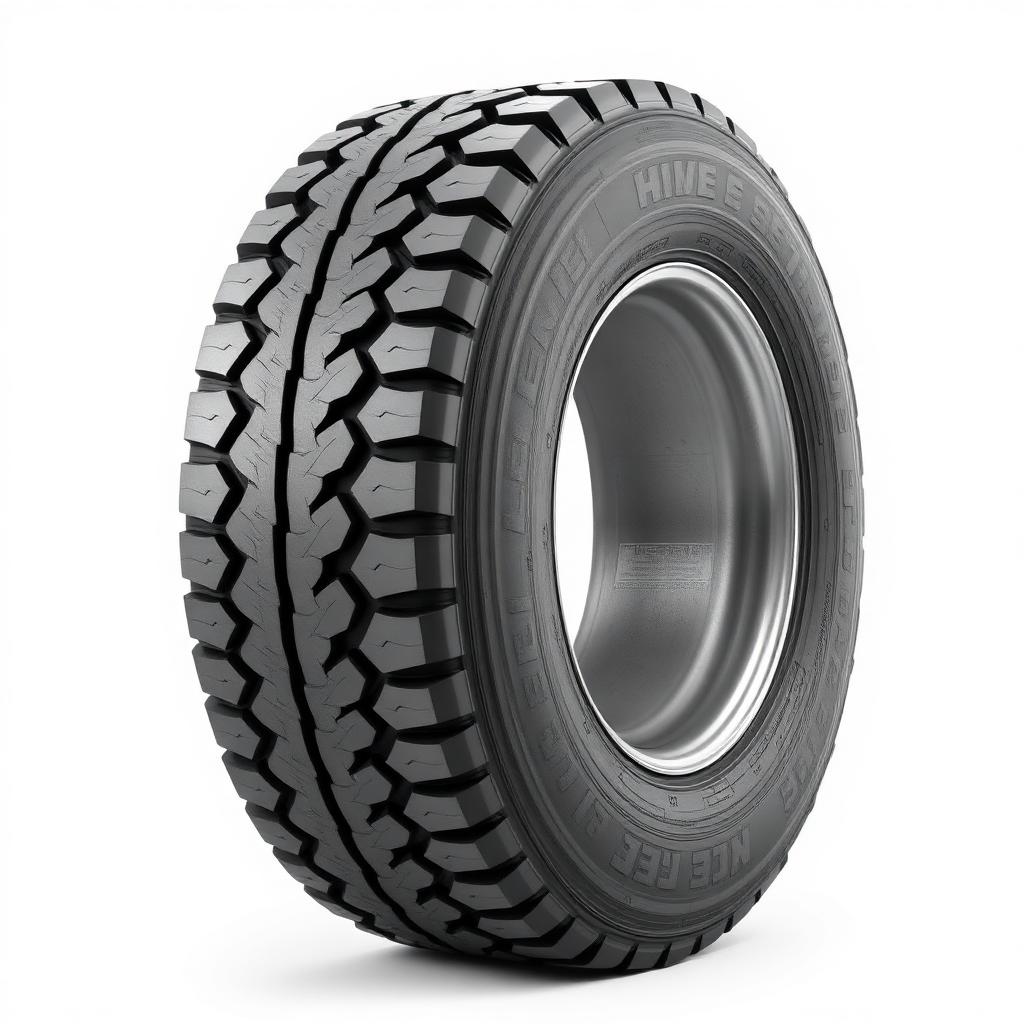

TRD07

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
12R22.5	150/147L	16	9.00	8.25	300	1085	504	3350 / 7390	3075 / 6780	830	120	20.0
12R22.5	152/149K	18	9.00	8.25	300	1085	504	3550 / 7830	3250 / 7160	930	135	20.0

DRIVEREGIONAL HAULMIXED SERVICE

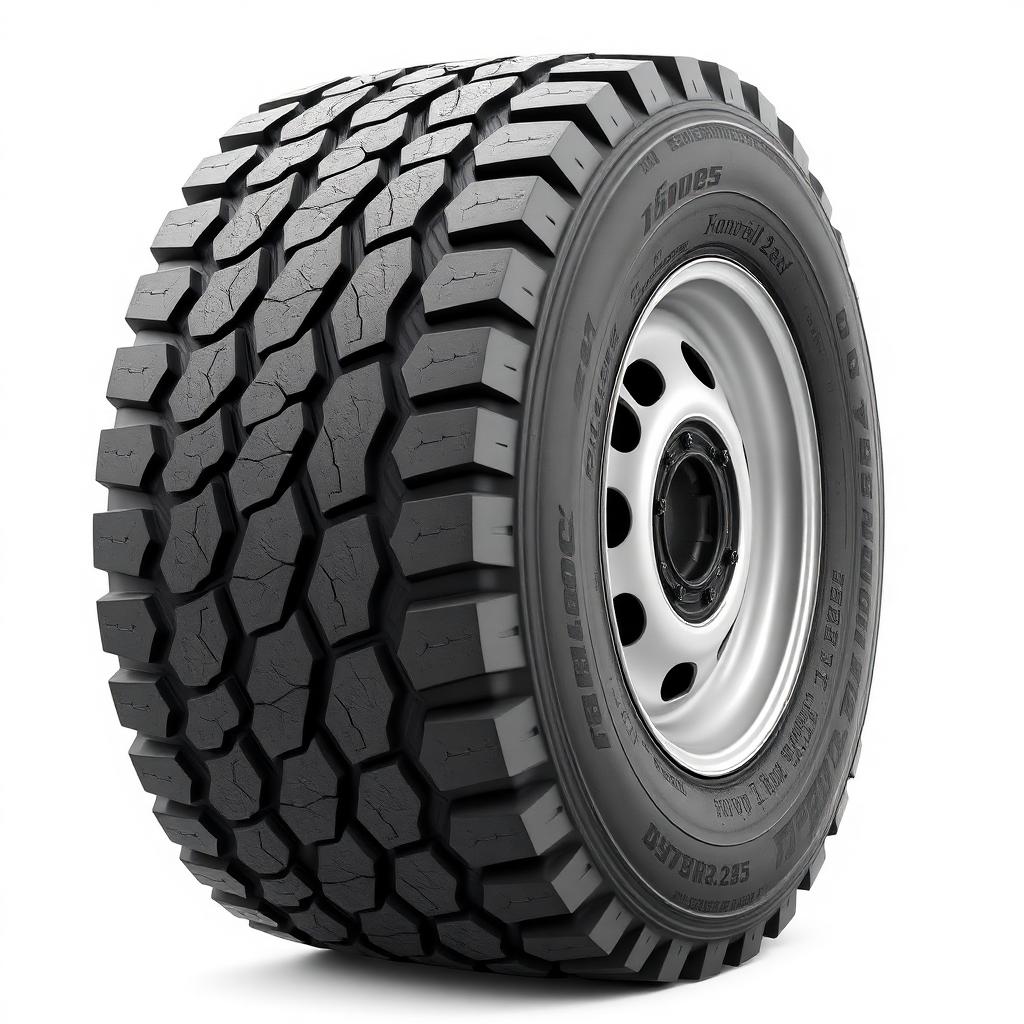

TRD01

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
11R22.5	144/142M	14	8.25	7.50	279	1054	491	2800 / 6175	2650 / 5840	720	105	22.5
11R22.5	146/143M	16	8.25	7.50	279	1054	491	3000 / 6610	2725 / 6005	830	120	22.5
11R24.5	146/143M	14	8.25	7.50	279	1104	516	3000 / 6610	2725 / 6005	720	105	21.0
11R24.5	149/146M	16	8.25	7.50	279	1104	516	3250 / 7160	3000 / 6610	830	120	21.0

DRIVEOFF ROADMIXED SERVICE

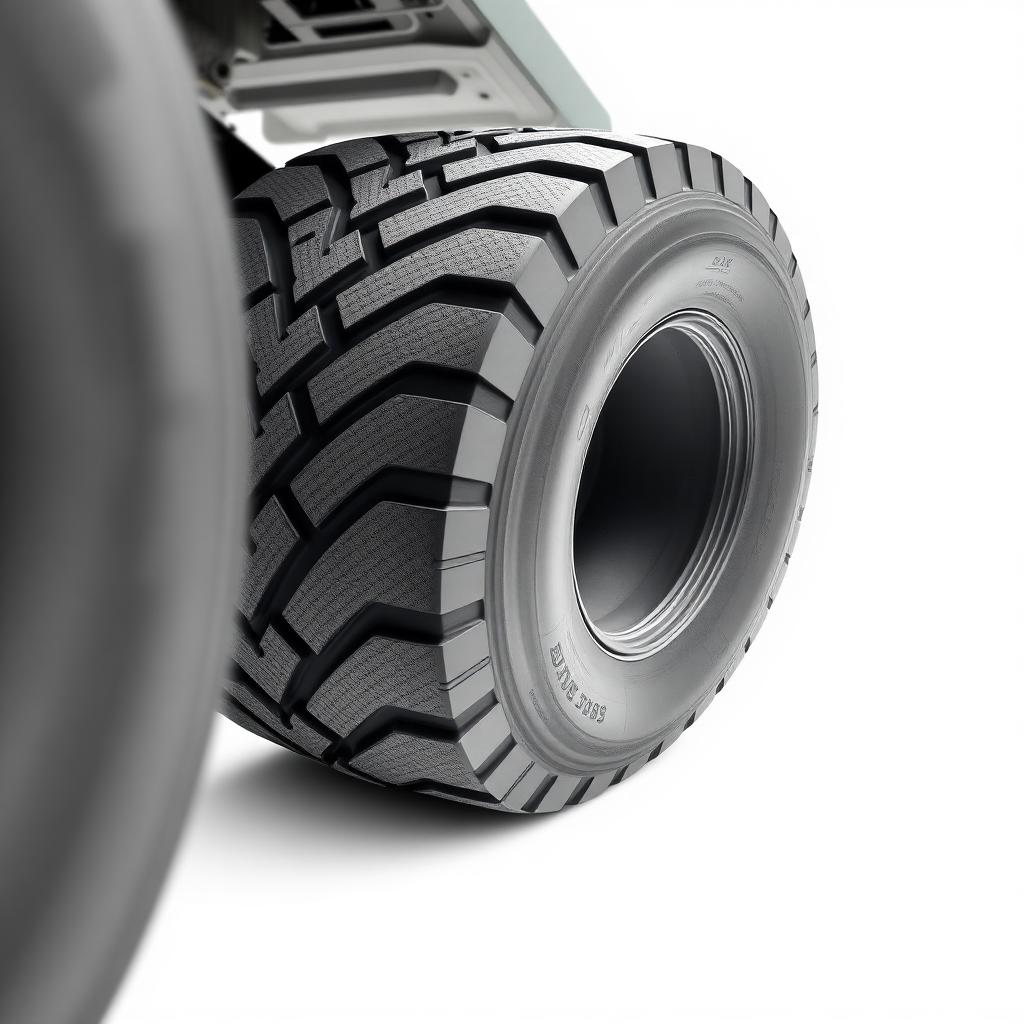

TRD03

Detailed specifications available on request — contact us for the full data sheet.

DRIVELONG HAUL

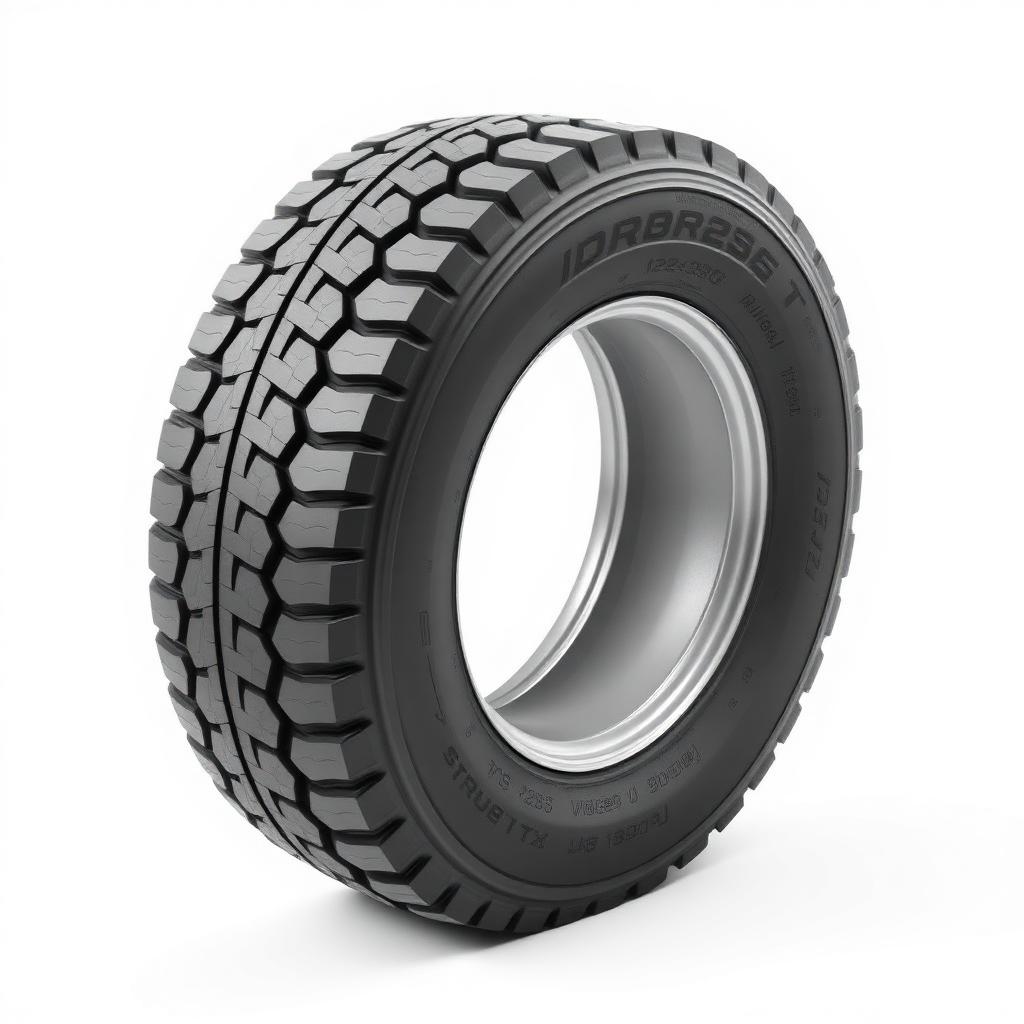

TRD21

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
12R22.5	150/147L	16	9.00	8.25	300	1085	504	3350 / 7390	3075 / 6780	830	120	20.0
12R22.5	152/149K	18	9.00	8.25	300	1085	504	3550 / 7830	3250 / 7160	930	135	20.0

TRAILERLONG HAULREGIONAL HAUL

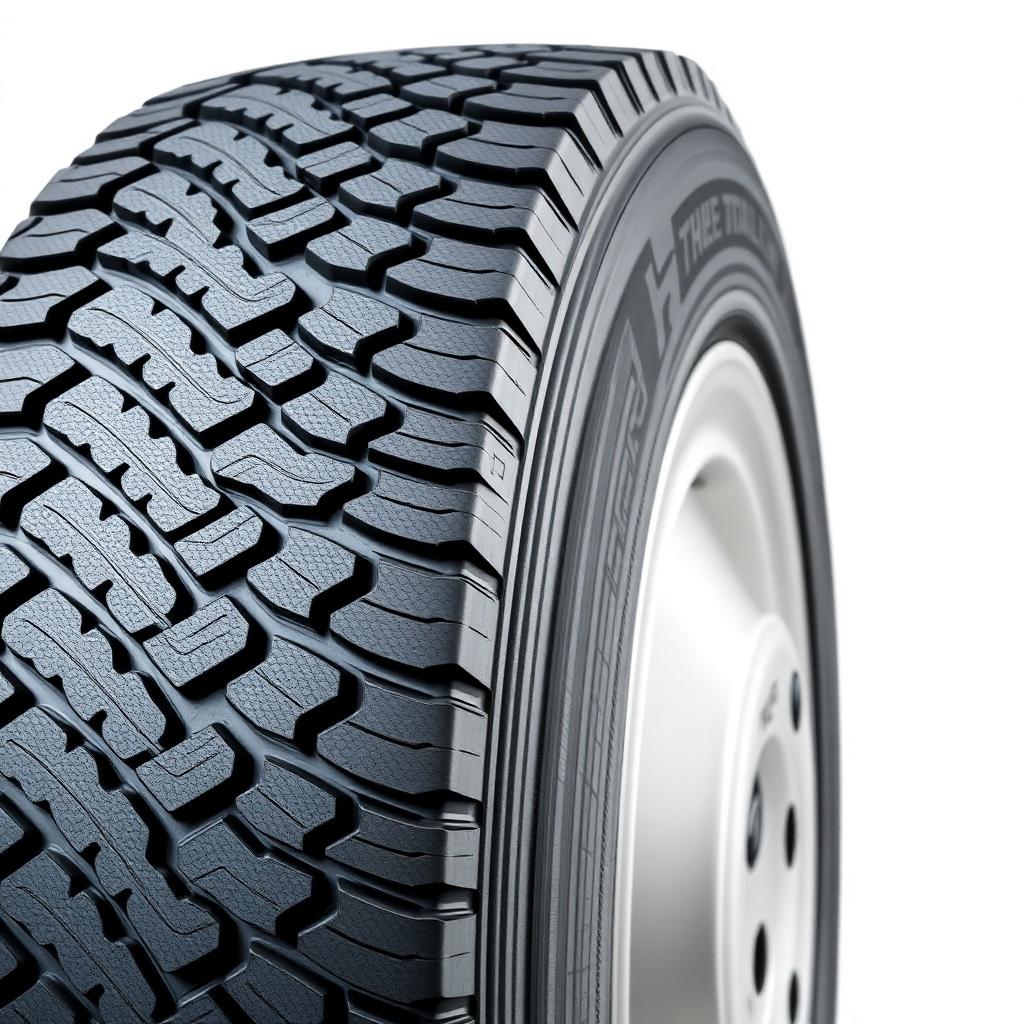

TRT01

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
11R22.5	144/142M	14	8.25	7.50	279	1054	491	2800 / 6175	2650 / 5840	720	105	11.0
12R22.5	150/147L	16	9.00	8.25	300	1085	504	3350 / 7390	3075 / 6780	830	120	16.0
255/70R22.5	140/137M	16	7.50	8.25	255	930	435	2500 / 5510	2300 / 5070	830	120	13.0

ALL POSITIONMIXED SERVICE

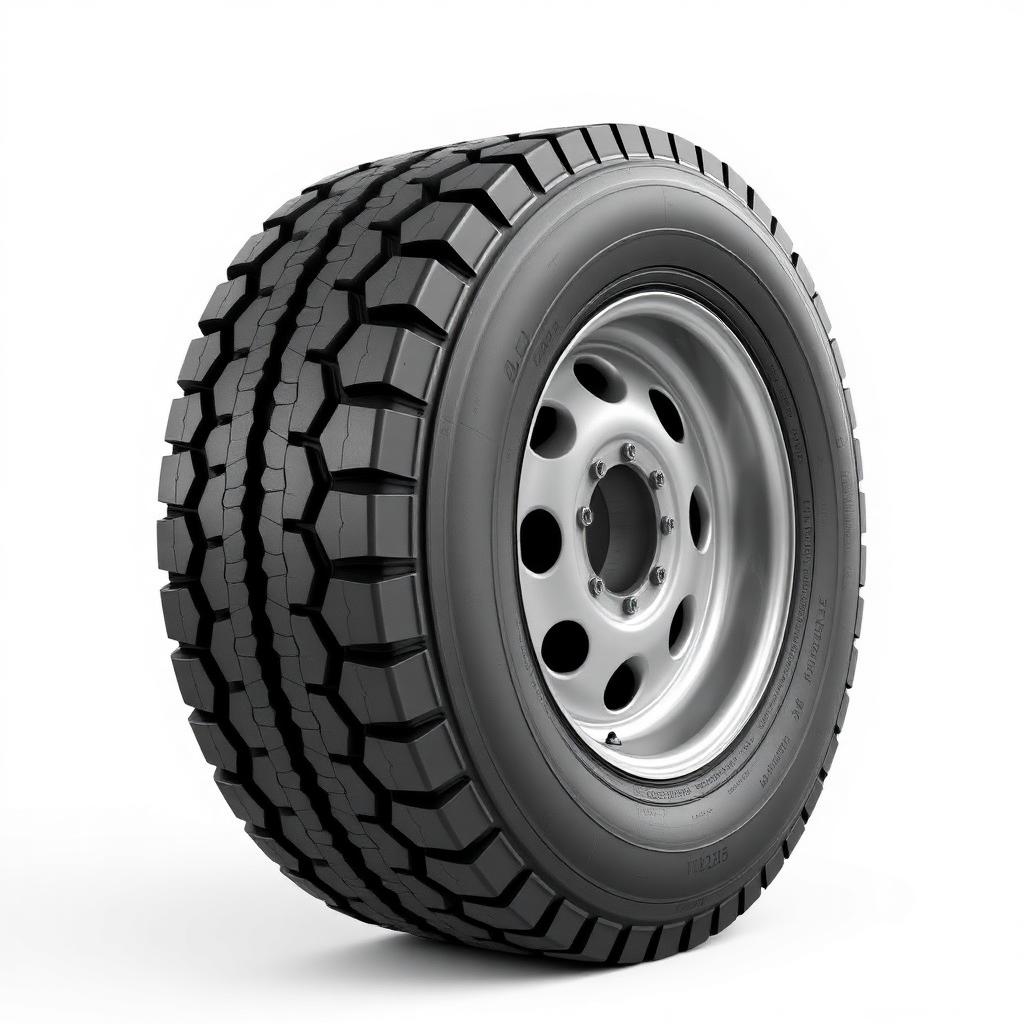

TRA22

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
12R22.5	150/147L	16	9.00	8.25	300	1085	504	3350 / 7390	3075 / 6780	830	120	15.5

ALL POSITIONMIXED SERVICEOFF ROAD

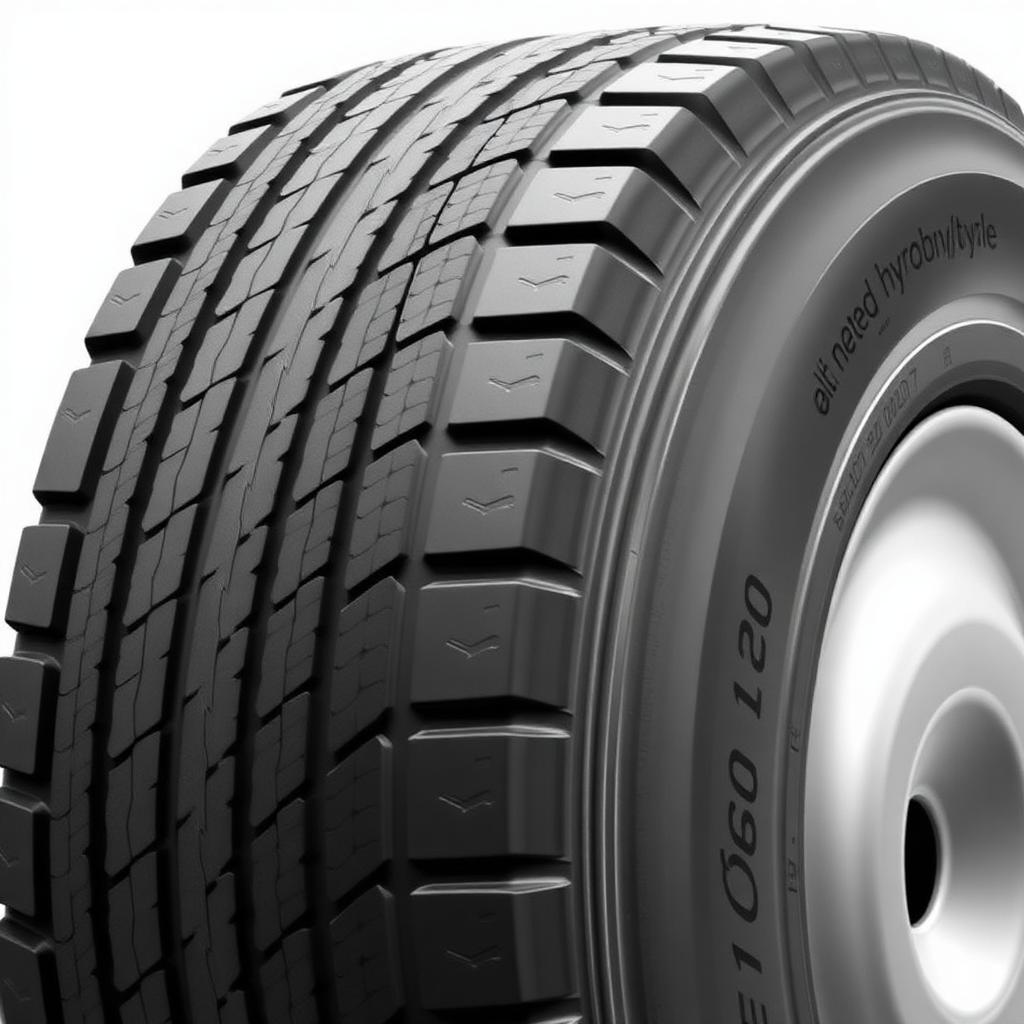

TRA21

Specifications

Size	LI/SS	PR	Rim	Rim Alt	SW (mm)	OD (mm)	RUL (mm)	Load Single (kg/lbs)	Load Dual (kg/lbs)	IP (kPa)	IP (psi)	OTD (mm)
11.00R20	150/147K	16	8.0	8.5, 8.00V	293	1085	499	3350 / 7390	3075 / 6780	830	120	16.0

ALL POSITIONMIXED SERVICEOFF ROAD

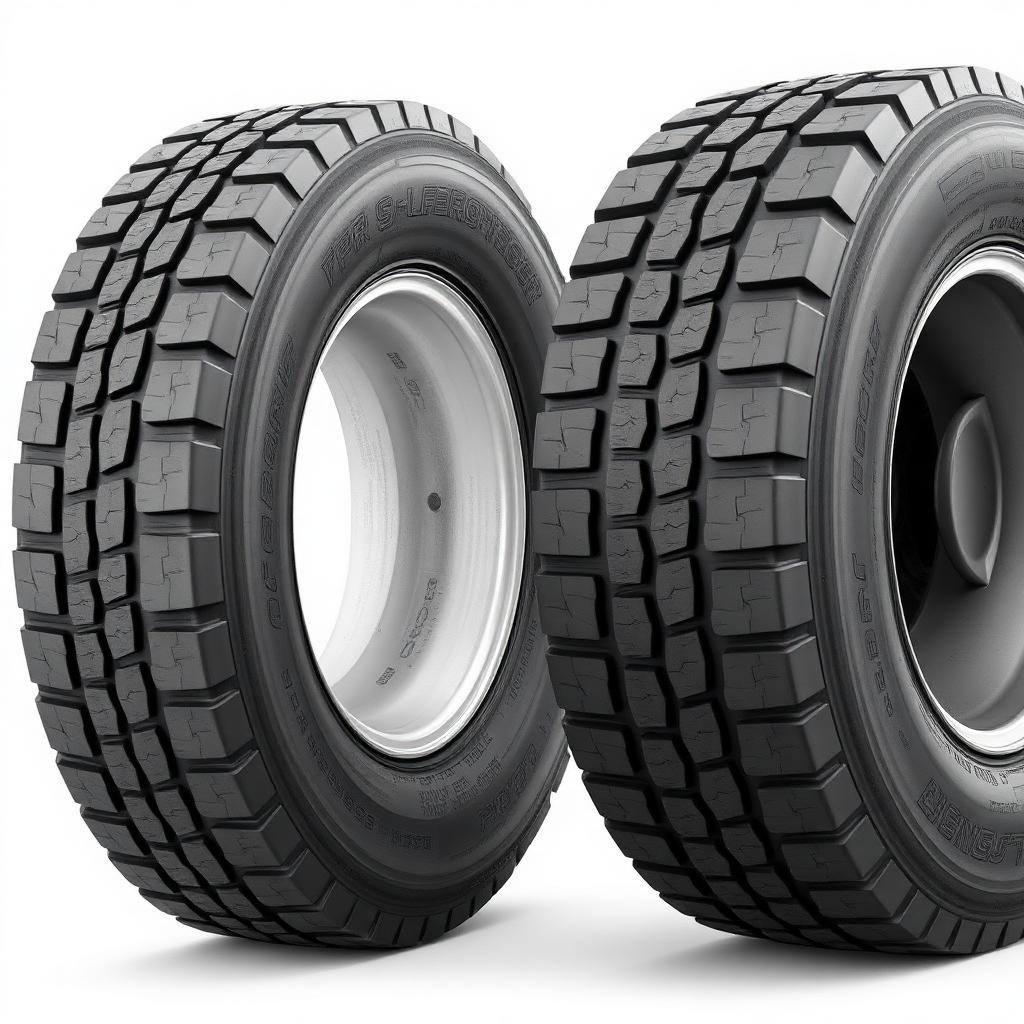

TR657 / TR668

Detailed specifications available on request — contact us for the full data sheet.
